| Part Numbers | C2527B (IBM AT compatible) C2528B (Micro Channel) C2529B (Macintosh) |
|---|---|
| Scanner Type | Flatbed, color and grayscale |
| Scanning Mechanism | 1 pass |
| Resolution, Enhanced Resolution, Optical |
2400 dpi 600 dpi |
| Color Recognition | 30-bit (more than 1 billion colors) |
| Grayscale Levels | 1,024 (10-bit) |
| Scanning Speed | 4 seconds per page (preview) 7.5 seconds per page (300 dpi B/W, letter) 7.5 seconds (300 dpi color) |
| Max Document Scan Size | 8.5 x 14 inches |
| Software Included | HP DeskScan II, Caere OmniPage Limited Edition OCR, Corel PHOTO-PAINT 5 (PC only), Adobe PhotoShop LE (Macintosh only) Visioneer PaperPort, HP ScanJet copy utility |
| Live Preview AutoFind Auto Exposure |
Yes (HP DeskScan II) Yes (HP DeskScan II) Yes (HP DeskScan II) |
| Thumbnail Preview | Yes |
| Scaling | Yes (HP DeskScan II) |
| Print-Path Calibration | Yes (HP DeskScan II) |
| OCR Software Included | Caere OmniPage Limited Edition OCR |
| OCR Accuracy | 5-7 point type |
| HP AccuPage Technology | Yes |
| Online Learning | Yes |
| OLE Support TWAIN Support |
Yes Yes |
| Host Support | IBM AT compatibles, Micro Channel, and Macintosh |
| Interfaces | SCSI adapter (PC) or SCSI cable (Macintosh) |
| Automatic Document Feeder | Optional, 50 pages |
| Warranty | 1-year HP Express Exchange |
| Width x Depth x Height | 15 x 23 x 4 inches (368 x 585 x 105 mm) |
Back

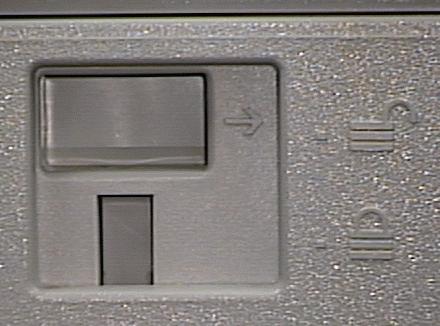

Lock (Currently Unlocked)

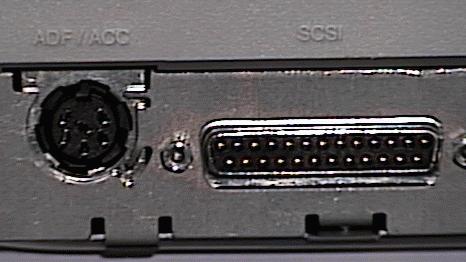

ADF connection

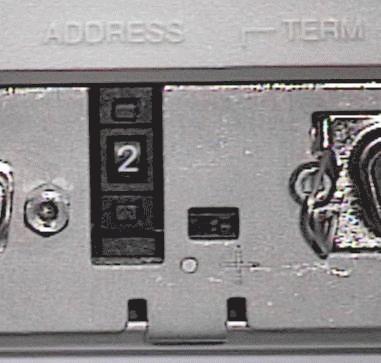

SCSI Address and Terminator

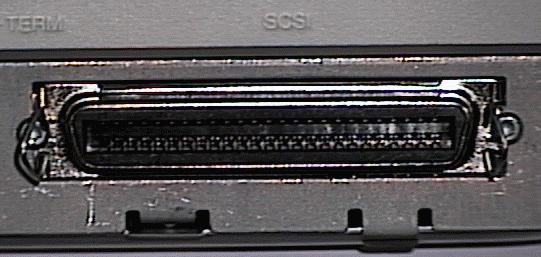

SCSI connection

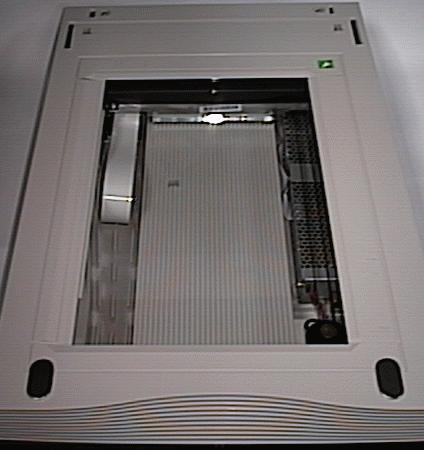

Inside
